Aluminium System

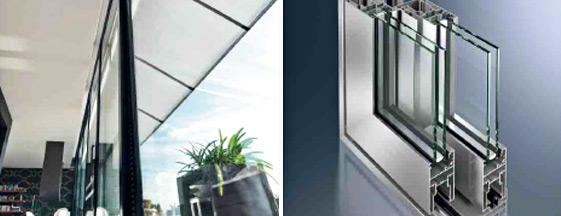

SCHUECO SLIDING SYSTEM



REYNAERS SLIDING SYSTEM

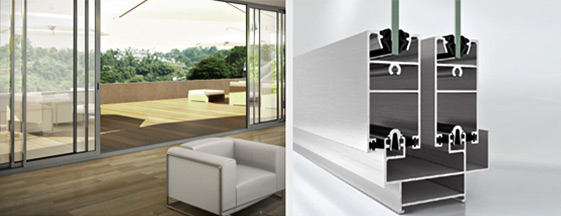

AluK SLIDING SYSTEM

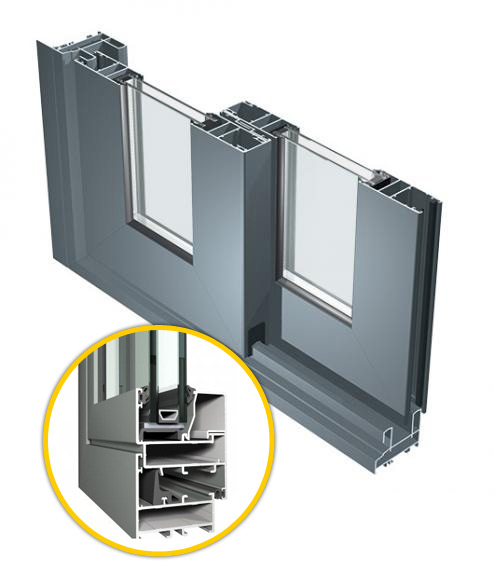

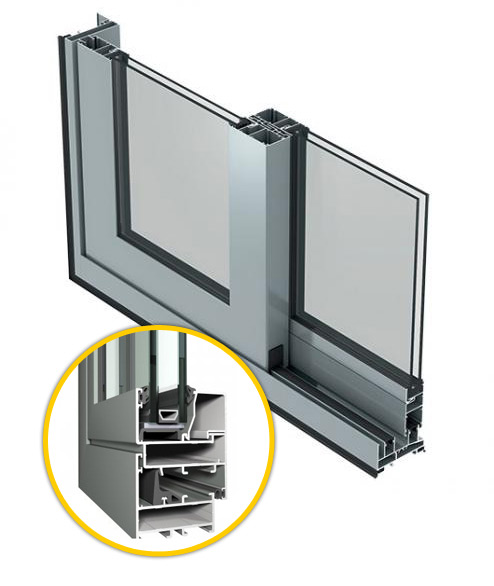

AluK SC70

The SC70 is a 70 mm, non-insulated sliding series. It offers a versatile, high performance solution suitable for various structure types matching most building requirements.
The system perfectly integrates the 45DS casement window and door series, therefore many structure typologies with fixed lights are possible.

DESIGN FEATURES

- The brushes are in high-density propylene with central water stripping.
- Die-cast metal roller with reinforced polyamide wheels and ball bearings.
- Maximum load : 150 kg / shutter.
- Glass thickness : up to 24 mm

OPTIONS

- A wide range of solution is available
- many profile dimensions are possible according to the wind load
- All finishes available. Customized finishes on request suited for high resistance to agressive environments.
- 2-3-4-6 sashes movable on two or three tracks
- Fixed + sliding sash window

AluK SC95

The SC95 is a 95 mm, non-thermally broken sliding system for windows and doors.

DESIGN FEATURES

- The retention brushes are in high-density propylene with central water stripping.
- Die-cast metal roller with reinforced polyamide wheels and ball bearings.
- Maximum load : 150 kg/sash
- Glass thickness : up to 24 mm
- Compatible with 45DS casement windows

OPTIONS

- A wide range of solution is available
- Low threshold option for unimpeded access through the door
- All finishes available. Customized finishes on request suited for high resistance to agressive environments.
- windows, balcony-doors
- 2-3-4-6 sashes movable on two or three tracks
- Fixed + sliding sash window

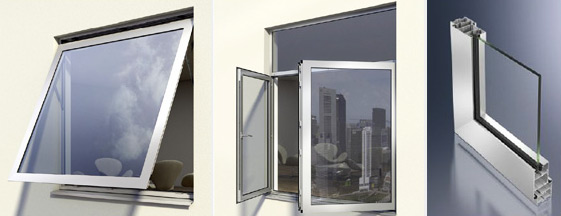

SCHUECO CASEMENT SYSTEM




REYNAERS CASEMENT SYSTEM




ALUK CASEMENT SYSTEM

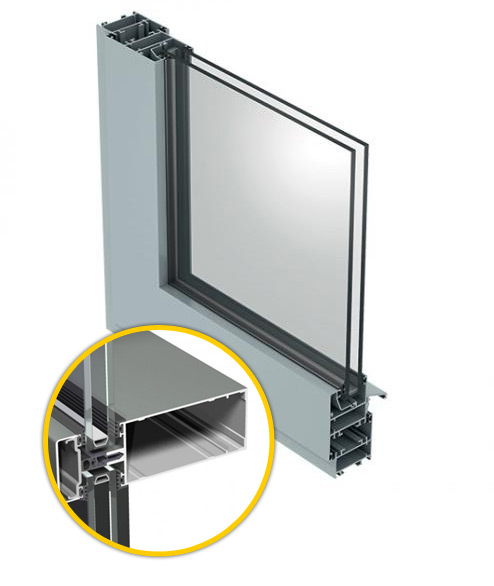

AluK 45DS

PRODUCT DESCRIPTION

The 45DS is a 45 mm, non-insulated door system that offers optimized design, yet affordable solution for all construction types requiring good weather performances.
Its simple appearance and clean lines suit the modern environment design requirements. Its wide choice of applications and technical solutions makes it ideal for all types of residential and commercial establishments. The 45 DS casement is the ideal system for exterior joinery in tropical and hot climates.

DESIGN FEATURES

- double overlap
- frame/sash depth : 45 mm
- squared or rounded glass bead

OPTIONS

- All surface finishes available
- casement, turn and tilt
- inward and outward opening

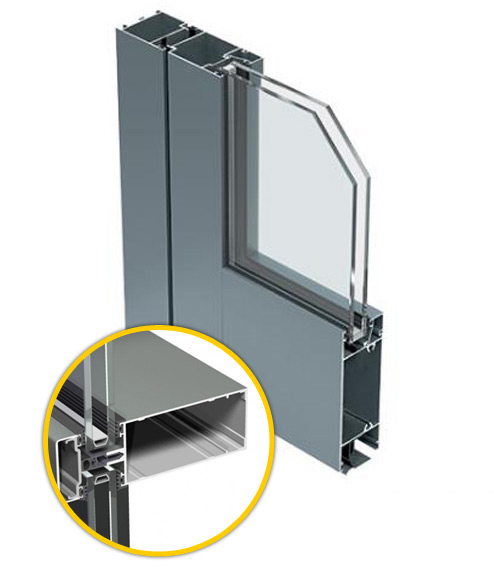

AluK 53CO

PRODUCT DESCRIPTION

The 53CO is a non-insulated flush door with inward and outward opening. Frame and sash are 53 mm deep.
This series has been designed to offer top-quality door sets with complete machining and fittings (sill profiles, plugs). The 53CO is compatible with simple or safety “multipoint” door locks to improve burglary resistance.

DESIGN FEATURES

- - Tight seal with double rebate gaskets along the perimeter.
- Frame and sash : 53 mm
- Traditional shape
- Flus door, both inward and outward opening
- Squared, smoothed or rounded glazing beads
- Glazing thickness : 4 to 30 mm

OPTIONS

- security glazing beads for greater burglary resistance
- full range of colors available
- 1 and 2 sashes
- Outward/inward openings
- swing doors, fixed panels, overlight, bottom hung, storefronts.

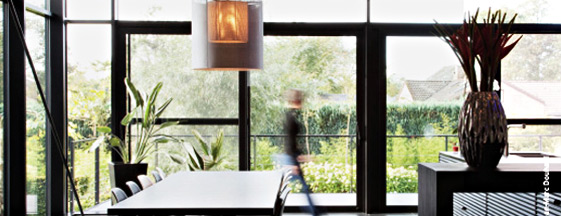

REYNAERS CURTAIN WALL SYSTEM

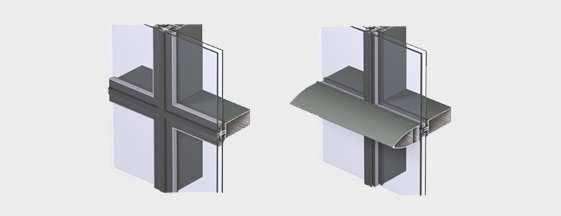

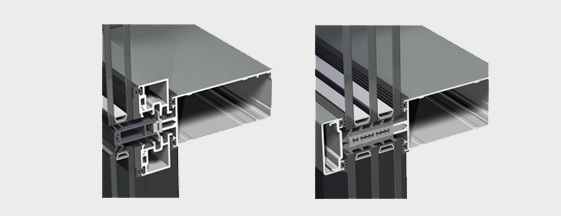

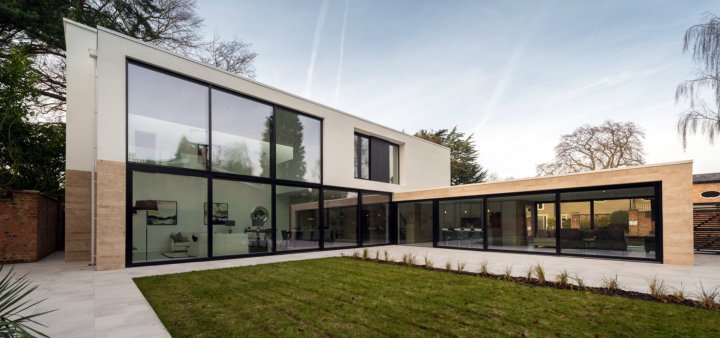

REYNAERS CW50
